ABS Plastic Modular Locker System – Product Description

I. Product Overview

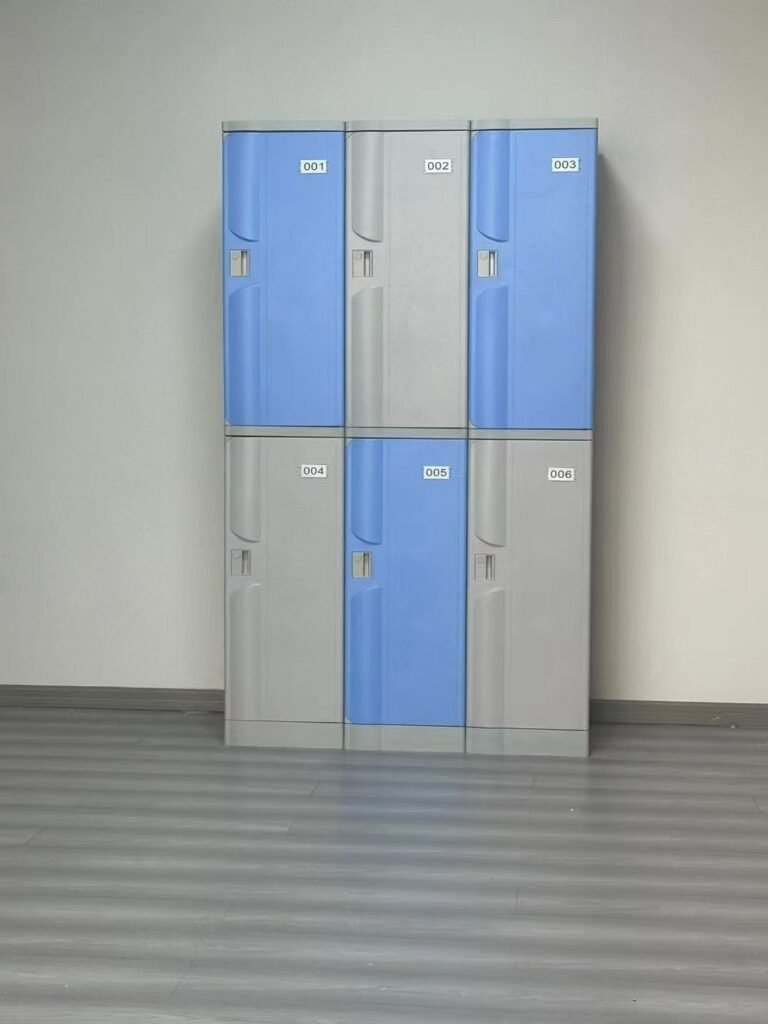

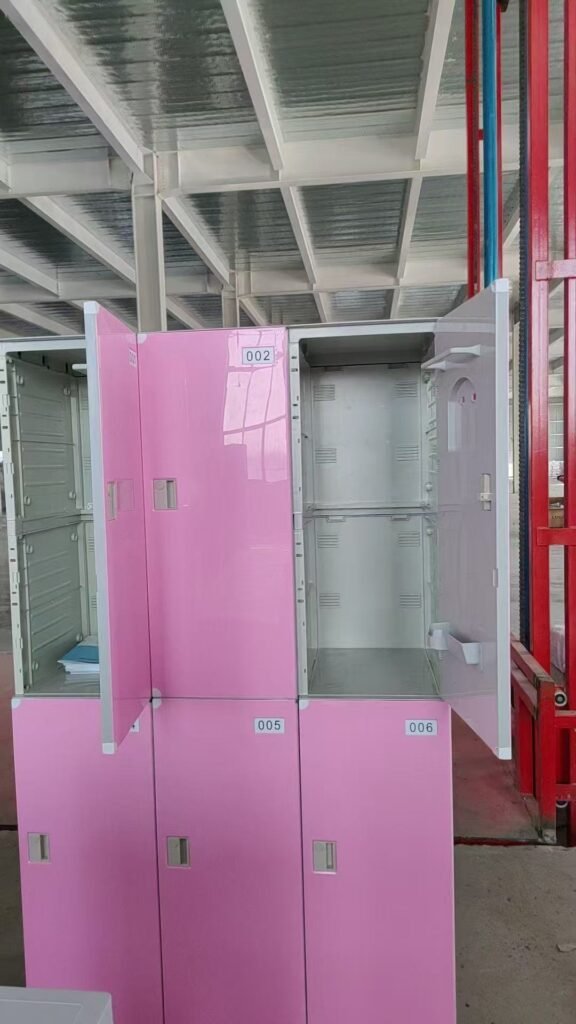

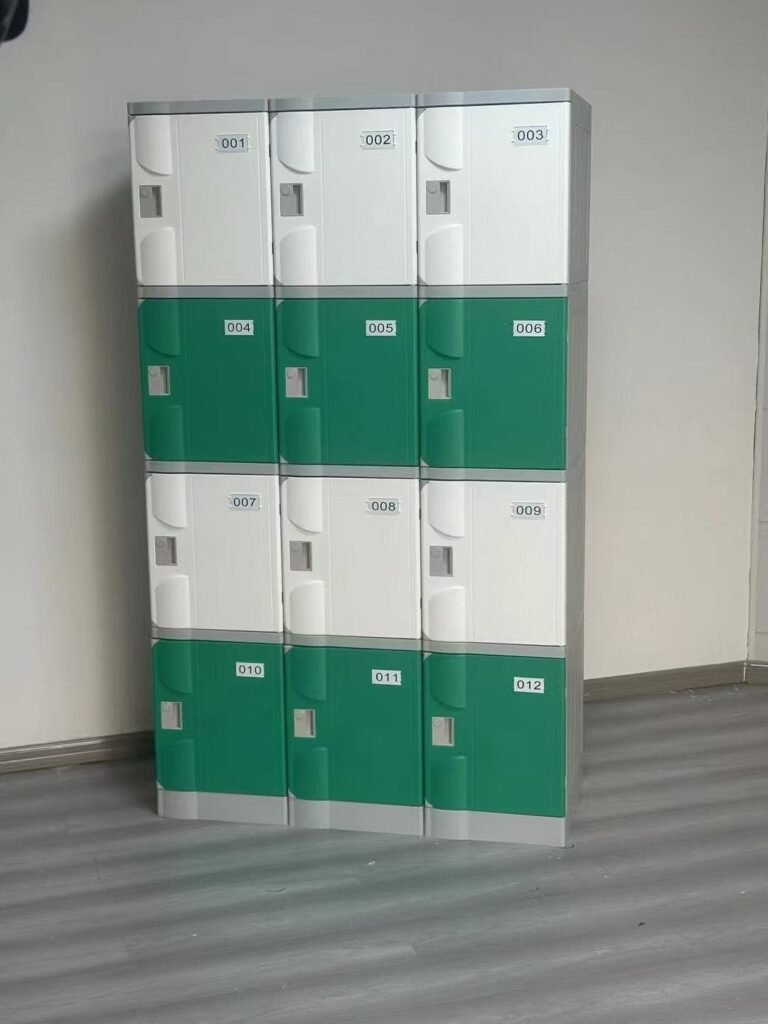

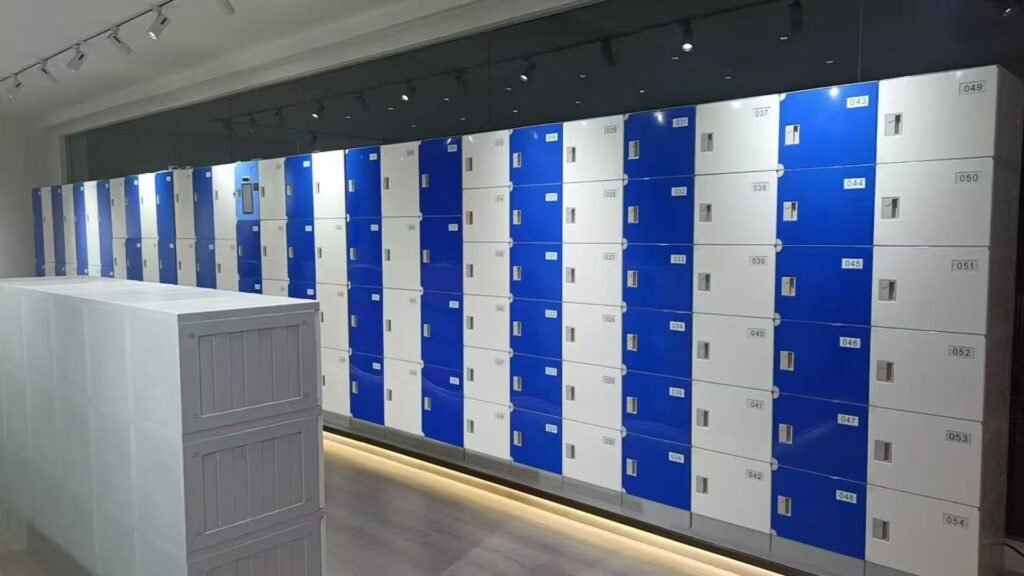

Introducing our innovative ABS Plastic Modular Locker System, specifically engineered for modern offices, factories, schools, gyms, swimming pools, and other public spaces. This cutting-edge storage solution perfectly combines durability, functionality, security, and aesthetics, effectively addressing common issues with traditional metal lockers (prone to rust) and wooden lockers (vulnerable to moisture). Featuring our innovative snap-lock and mortise-tenon construction, this modular system supports flexible combination installation based on available space. With diverse locking options and user-centric design details, we provide users with clean, private, and convenient personal storage solutions.

II. Product Specifications

Category	Parameter/Configuration	Description
Primary Material	Eco-friendly ABS Plastic	Water and moisture resistant
Single Door Standard Size (W×D×H)	320mm×420mm×930mm	Customizable dimensions available
Standard Combination Overall Size (W×D×H)	1940mm×420mm×960mm (6-door)	Customizable dimensions available
Combination Specifications	Flexible combination system	Number of tiers and columns customizable based on site requirements
Single Unit Load Capacity	Heavy-duty load capacity	Contact manufacturer for specific weight ratings
Colors	White, Fruit Green, Light Blue, Pink, Yellow, Gray, Orange	Custom colors available, mixed color combinations supported

III. Detailed Product Design

Door System:

• Material: Integrated ABS plastic door panel, one-piece molding for enhanced durability
• Anti-Collision Rounded Corners: Arc-shaped soft collision-proof edges to prevent user injury
• Handle Options: Standard external protruding handle or recessed concealed handle design. The recessed handle offers a sleek profile, easy operation, and space efficiency without snagging
• Auto-Latching Spring Mechanism: Built-in spring latch automatically engages when closed, ensuring secure door closure and preventing accidental opening
• Label/Name Plate Area: Clear designated labeling zone on door panel for easy user identification and streamlined management

Internal Structure:

• Adjustable Shelving: Shelf height freely adjustable to accommodate various storage items (shoes, folders, helmets, etc.)
• Multi-Purpose Storage Compartment: Built-in small storage box for organized storage of valuable items like phones, wallets, keys, and watches
• Key Hooks: Thoughtfully designed hooks on door interior for convenient key hanging, preventing loss or forgetting
• Hanging Rod: Standard or optional high-strength hanging rod in upper compartment for clothes and backpack storage
• 80mm Elevated Base: Raised bottom design provides effective moisture protection, facilitates floor cleaning, and enhances overall stability
• Ventilation Design: Concealed ventilation holes promote air circulation, maintaining dry and fresh interior conditions

Locking Security System (8 Options Available, Mix & Match Supported):

Traditional Mechanical:

• Standard handle (no lock)
• Mechanical key lock (classic and reliable)

Simple Latch Types:

• Internal rotary latch lock
• External latch lock (key-free, simple operation)

Smart Electronic Options:

• 4-digit digital combination lock
• Card swipe sensor lock
• Fingerprint recognition lock
• Touchscreen password lock (premium, convenient, efficient management)

Overall Structural Engineering:

• Modular Combination Design: Individual units can be combined into multi-tier, multi-column locker configurations using connectors, with flexible layout adjustment based on site dimensions
• Stable Connection Structure: Mortise-tenon construction at key connection points ensures tight linkage between side panels and top/bottom panels for overall frame stability
• Anti-Displacement Limiting Design: Upper cabinet back panels insert into lower cabinet back panel slots, creating vertical constraints that effectively prevent forward/backward movement of upper units

IV. Installation, Usage & Maintenance

Installation:

• Install on level, dry ground surface
• Follow instruction manual to securely connect base and frame components using snap-lock and mortise-tenon structures
• Install back panels, side panels, shelves, and internal accessories in sequence
• Install door panels and configure locking mechanisms according to selected lock type
• When combining multiple units, ensure connectors are securely fastened and utilize back panel limiting design for enhanced stability

Usage:

• Distribute cabinet space rationally; place heavy items on bottom level, distribute weight evenly to avoid point overloading
• For combination or electronic locks, replace batteries regularly and remember passwords or properly manage access cards
• Ensure latch fully engages when closing doors
• Avoid striking with hard objects or scratching surfaces with sharp items

Maintenance:

• Clean with soft cloth dampened with neutral cleaner or water only; avoid corrosive chemical solvents (such as paint thinners, strong acids/bases)
• While ABS material is water and moisture resistant, maintain ventilated, dry environment around cabinet to extend service life
• Regularly inspect tightness of locks, hinges, and connectors; tighten if loose
• Handle with care during relocation or recombination; avoid violent impacts that could cause component damage or structural deformation
