Technical Specifications and Safety Standards for Gas Cylinder Storage in Birmingham Industrial and Laboratory Environments

In modern factory workshops, research laboratories, and medical facilities throughout Birmingham, proper storage of compressed gas cylinders is an essential component of occupational health and safety management. To effectively prevent gas leaks, fire hazards, and accidental cylinder tipping, the use of standard-compliant high-strength gas cylinder cabinets has become a fundamental requirement for industrial production and laboratory compliance.

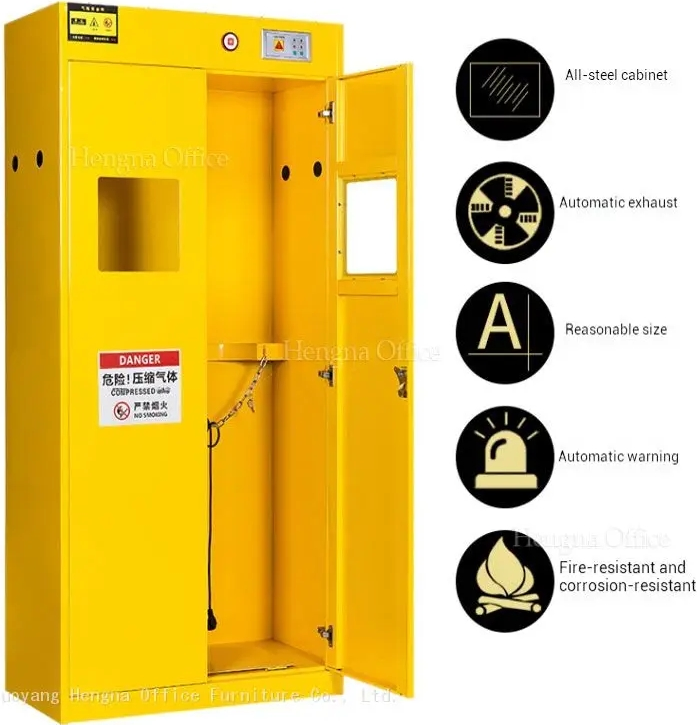

1. Material and Durability Specifications

High-quality gas cylinder cabinets prioritize structural strength and chemical stability in their design:

• Main Structure: Constructed from high-strength cold-rolled steel plates, typically 1.0mm in thickness.
• Surface Treatment: Cabinet surfaces undergo anti-rust treatment and epoxy resin electrostatic spraying, which not only prevents corrosion but also provides excellent acid and alkali resistance and anti-corrosion properties, extending service life in humid or chemical working environments.
• Key Components: Equipped with all-steel or galvanized hinges to ensure sealing and durability of door operations, maintaining stability even under frequent industrial use.

2. Classified Storage for Different Gas Types

Gas cylinder cabinets are typically color-coded and functionally configured according to the properties of stored gases (such as acetylene, oxygen, methane, etc.) to comply with safety regulations:

Cabinet Color	Recommended Application Scenarios	Common Stored Gas Examples
Warning Yellow	Industrial settings, welding workshops	Acetylene, propane, methane and other flammable and explosive gases
White/Gray	Laboratories, hospitals, medical centers	Oxygen, nitrogen, helium, anesthetic gases, etc.

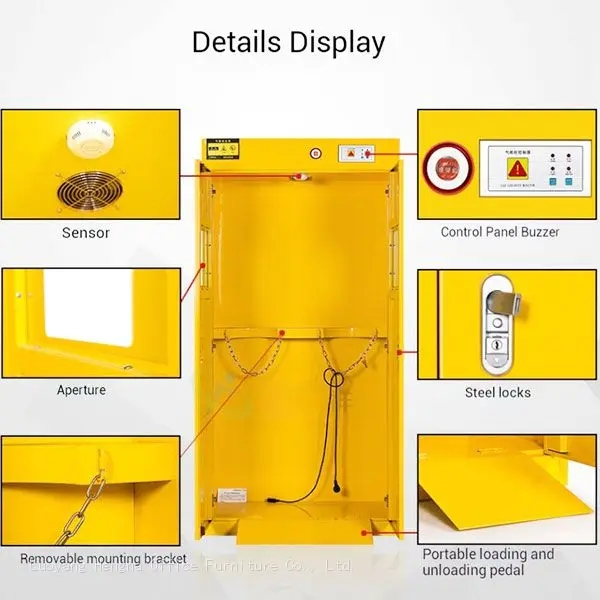

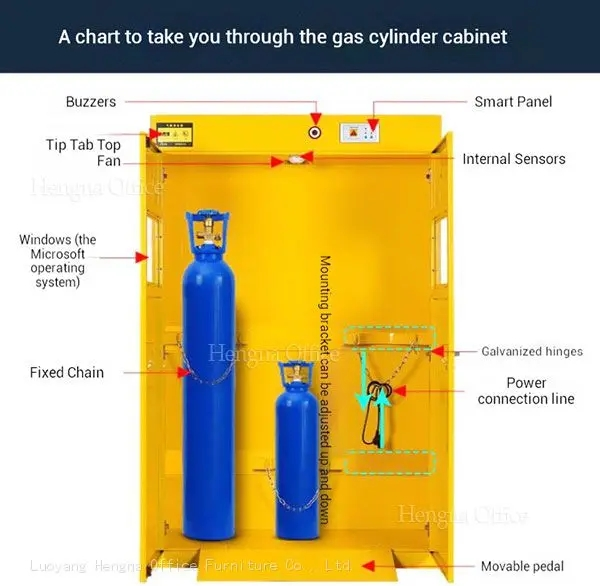

3. Core Safety Structure and Intelligent Monitoring

To achieve the management goal of “safety first, prevention first,” gas cylinder cabinets integrate multiple key technical features:

• Ventilation and Exhaust System: Cabinets are equipped with PASS ventilation openings, compatible with optional MAXAR automatic exhaust fans to reduce the risk of internal gas accumulation.
• Leak Monitoring and Alarm:
  • First-generation Alarm: Integrates basic leak detection with audio-visual alarm functions.
  • Second-generation Alarm: Upgraded intelligent system supporting remote monitoring and data recording. When detecting leaks, the second-generation system can automatically start ventilation within 5 seconds (compared to 10 seconds for the first generation).
  • Warning Mechanism: When concentration reaches preset values, triggers red flashing lights and approximately 85-decibel buzzer alarms.

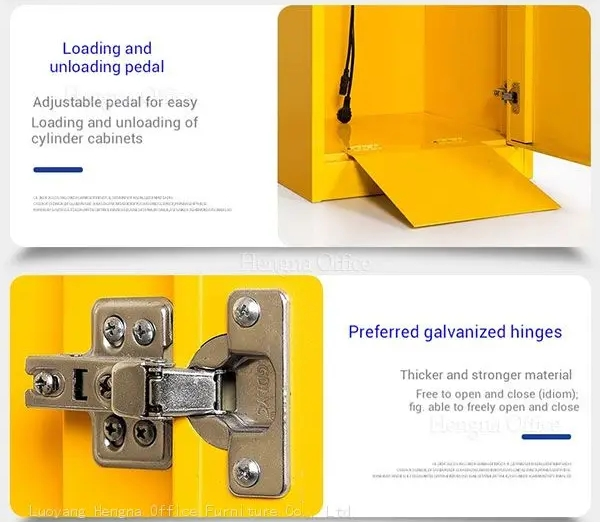

• Securing and Operational Convenience: Internally equipped with reinforced adjustable chains or nylon straps to prevent cylinder tipping. Additionally, provided removable or movable ramps greatly facilitate loading and unloading operations of heavy cylinders.

4. Common Dimension Specifications

Based on space requirements (such as under-desk space in Birmingham laboratories or large-scale storage areas in factories), gas cylinder cabinets offer various specifications:

• Compact Type (H1200mm): Suitable for under-desk or height-restricted areas.
• Standard Type (H1900mm):
  • Single Cylinder Cabinet: W500 × D450mm
  • Double Cylinder Cabinet: W900 × D450mm
  • Triple Cylinder Cabinet: W1200 × D450mm (extra-large capacity storage)

5. Application Venues and Key Points

• Universities and Research Laboratories: Must be equipped with leak alarms to prevent toxic leaks of carrier gases used with precision instruments.
• Semiconductor and Electronics Manufacturing: Requires extremely high standards for ventilation and explosion-proof performance.
• Pharmaceutical Factory Clean Rooms: Requires materials that are dust-free and resistant to corrosion from strong chemical cleaning agents.
• Petrochemical Testing Centers: Mandatory requirement for explosion-proof certification.

Conclusion

Through standardized design and intelligent monitoring functions, professional gas cylinder cabinets effectively address safety hazards in cylinder storage across various industries in Birmingham. Selecting cabinets equipped with high-security locks (such as German lock cylinders) and automated warning systems is an important measure to ensure enterprises achieve production safety compliance.
